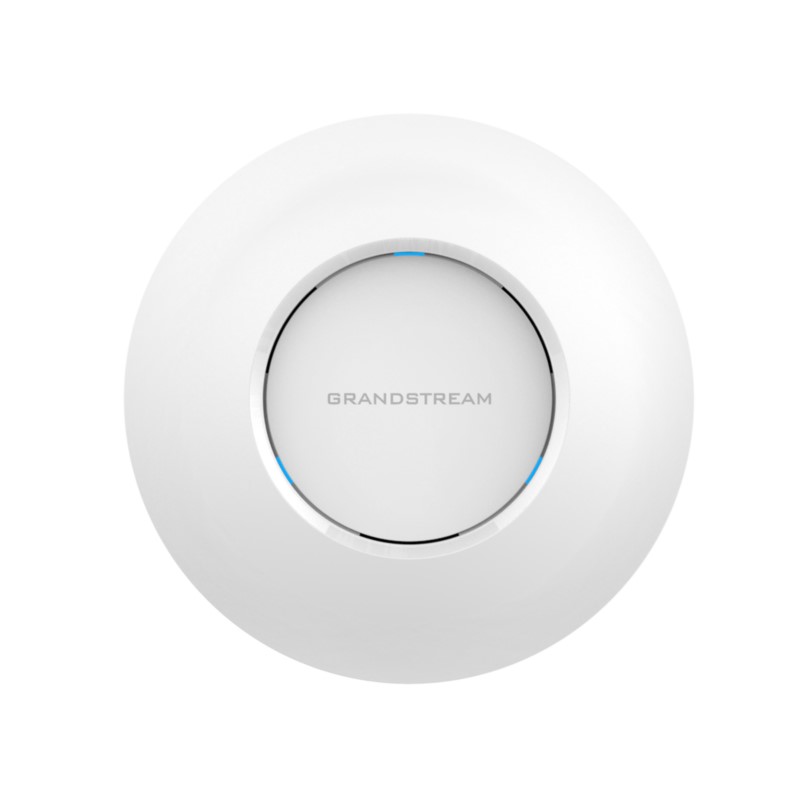

Grandstream GWN7610 Access Point

More Views

Grandstream GWN7610 Access Point

SKU: gra-gwn7610

Availability: In stock

Need to add this to your GAPS account? Add Grandstream GAPS to your order.

The GWN7610 is a high-performance 802.11ac wireless access point for small to medium sized businesses.

Description

Details

The Grandstream GWN7610 is a high performance 802.11ac WiFi Access Point, optimized for locations that could be considered small to medium sized, over multiple floor offices, commercial locations and branch offices. It offers dual-band 3x3:3 MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7610 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. This allows each access point to manage a network of up to 50 GWN7610s independently without needing seperate controller hardware/software and without a single point-of-failure.



Comparison Chart
Additional Information

Additional Information

Manufacturer Grandstream
Core Features
  • 1.75 Gbps wireless throughput and 2x Gigabit wireline ports.
  • Dual-band 3x3:3 MIMO technology
  • Self power adaptation upon auto detection of PoE or PoE+
  • Support more than 250+ WiFI client devices
  • Advanced QoS to ensure realtime performance of low-latency applications
  • Up to 175-meter range
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Embedded controller allows GWN7610 to auto-discover, auto-provision and mange up to 50 GWN7610's in a network
Technical Info
WiFi StandardsIEEE 802.11 a/b/g/n/ac
Antennas3x 2.4GHz, gain 3dBi, internal antenna3x 5GHz, gain 3dBi, internal antenna
Wifi Data RatesIEEE 802.11ac: 6.5 Mbps to 1300 MbpsIEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 MbpsIEEE 802.11n: 6.5 Mbps to 450 MbpsIEEE 802.11b: 1, 2, 5.5, 11 MbpsIEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands2.4GHz radio : 2.400 - 2.4835 GHz5GHz radio: 5.150 - 5.250 GHz, 5.725 - 5.850 GHz
Channel Bandwidth2.4G: 20 and 40 MHz5G: 20,40 and 80 MHz
WiFi and System SecurityWEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO3x3:3 2.4GHz, 3x3:3 5GHz
Coverage Range575 ft. (175 meters)
Maximum TX Power5G: 26dBm2.4G: 26dBm
SSIDs16 SSIDs per radio
Concurrent Clients250+
Network Interfaces2x autosensing 10/100/1000 Base-T Ethernet Ports
MountingIndoor wall mount or ceiling mount, kits included
Network ManagementEmbedded controller in GWN7610 allows it to auto-discover, auto-provision and manage up to 50 GWN7610s in a network
PhysicalUnit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 540gUnit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm; Unit + Mounting Kits Weight : 600gEntire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 900g
Package ContentGWN7610 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Diagrams
Model Series
