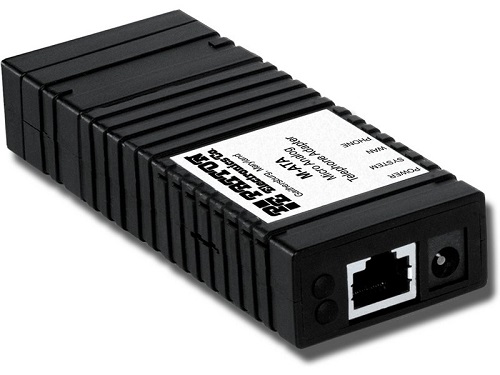

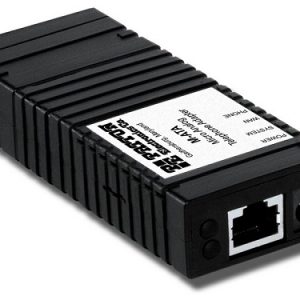

Patton M-ATA-1/EUI

SKU: pat-M-ATA-1/EUI

Availability: In stock

The SmartLink Micro Analog Telephone Adapter provides connectivity for analog phones to a home, home office or corporate LAN. Connecting to any analog phone or PBX, the SmartLink product is ay cost effective solution for small offices and telecommuters to access Internet-based telephone services and corporate intranet systems across established LAN and Internet connections like xDSL and cable modems.

Description

Details

The M-ATA provides one Ethernet (RJ-45) port and one FXS (RJ-11) analog phone port for quick and easy interconnection to the local LAN. LEDs show at-a-glance the status of the system, LAN, WAN, and phone ports.

A full suite of IP features (DHCP, NAT/PAT) are available to maximize universal connectivity. VLAN tagging and prioritization enables voice traffic to be handled before data traffic insuring higher quality voice calls. Support for PPPoE tunneling simplifies extending corporate intranet services to telecommuters.

The user friendly web interface offers two levels of configuration; level one covers basic subscriber specific parameters, level two offers advanced settings for the transport network. Configuration and firmware can be downloaded from a centralized TFTP or HTTP server.

The M-ATA is SIP standard compliant. Analog phones attached to the SmartLink can use advanced calling features such as call forwarding, caller ID, 3-way calling, call holding, call retrieval and call transfer.

Additional Information

Additional Information

Manufacturer Patton
Core Features
Technical Info

Voice Connectivity
  • 2-wire Loopstart, RJ-11/12
  • Short haul loop 1.1 km @3REN
  • Caller-ID Type-1/2 FSK and ITU V.23/Bell 202 generation
Connectivity 1 10/100Base-TX Full Duplex/Autosensing Ethernet RJ-45
Voice Processing (signalling dependent)
  • SIP
  • Voice CODECS (G.711 A-Law/µ-Law (64 kbps); G.726 (ADPCM 40, 32, 24, 16 kbps); G.723.1 (5.3 or 6.3 kbps); G.729ab (8 kbps))
  • G.168 echo cancellation
  • 2 parallel voice connections
  • DTMF detection and generation
  • Carrier tone detection and generation
  • Silence suppression and comfort noise
  • Configurable dejitter buffer
  • DTMF in-band & out-of-band
  • Configurable transmit packet length
  • RTP/RTCP (RFC 1889)
  • STUN
Voice Services/Features
  • Anonymous CallerID block
  • Call blocking
  • Call forward - on busy
  • Call forward - selective
  • Call forward - unconditional
  • Call hold/retrieve
  • Call return
  • Call transfer - blind
  • Call transfer - with consultation
  • Call waiting/retrieval
  • Caller-ID
  • Conference drop
  • Conferencing (3-way calling)
  • Distinctive ring
  • Do not disturb
  • Hotline calling
  • Incoming CallerID on/off
  • IP URL dialing
  • Message waiting indication
  • Self-caller ID block
  • Speed dial
  • Voicemail message retrieval
  • Warmline calling
IP Services
  • NAPT
  • DHCP client
  • PPPoE
  • Programmable static routes
  • ICMP redirect (RFC 792); Packet fragmentation
  • VLAN support 802.1p/q
Call Routing & Services
  • Regular expression number matching
  • Regular expression number manipulation
  • Least Cost Routing Number blocking
  • Short-Dialing
  • Digit collection
  • Distribution-Groups & Hunt-Groups
  • 2nd call offering
Management
  • Browser configuration interface
  • Multilevel security access
  • TFTP & HTTP configuration & firmware loading
  • SNMP v2 agent
  • Syslog support
Power100–240 VAC (50/60 Hz)
Temperature0 to 40°C (32 to 104°F)
HumidityHumidity: 5 to 80% (non condensing)
Dimensions20.8W x 3.4H x 16.5D cm (8.2W x 1.3H x 6.5D in.)
Weight< 450 g (15.9 oz)
Compliance
  • EMC compliance: EN55022 and EN55024
  • Safety compliance: EN 50950
  • CE compliance
  • FCC Part 15 Class B
