Yealink CP930W Base

More Views

Yealink CP930W Base

SKU: yea-cp930w-base

Availability: In stock

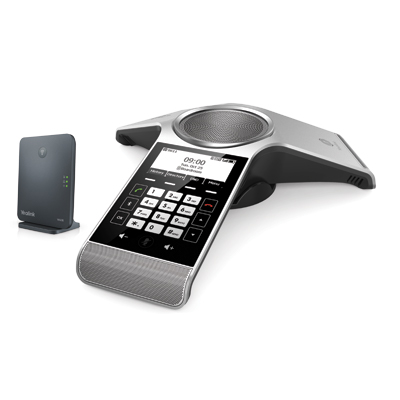

***INCLUDES CP930W, CHARGING BASE, AND W60B***

The Yealink CP930W is designed for wireless communication environments such as small-to-medium meeting rooms and huddle rooms.

DESCRIPTION

Manufacturer: Yealink


Employing DECT technology, the Yealink CP930W Wireless DECT Conference Phone allows you to hold meetings wherever or whenever is convenient for you. Working with Yealink W60B base station, which owns the DECT radio coverage up to 50m indoors, CP930W can be provided with good and stable signal.


Thanks to its built-in battery and the DECT technology, CP930W entirely frees you from the network and power outlets troubles, giving you a tidy conference table with only one elegant CP930W. Also, its built-in rechargeable battery ensures up to 24 hours of call time and 15 days of standby time, guaranteeing a long working time without recharging and making CP930W totally wireless in DECT environment.


The Yealink CP930W DECT conference phone, marrying the Yealink Noise Proof Technology, unburdens the business conversation by reducing annoying noise and minimizing distractions to set audio experience into a new level. Thanks to its built-in 3-microphone array, CP930W owns a 20-foot (6-meter) and 360-degree voice pickup range as if all participants are sitting across the table from each other.


Morever, pairing Yealink CP930W with your smartphone (via Bluetooth) or PC/tablet (via micro USB) allows you to turn the Yealink CP930W into a loudspeaker and microphone with ease that the collaboration may be easier than ever before.



Yealink CP930W Core Features:


  • Built-in battery
  • Up to 24-hour talk time
  • Up to 15-day standby time
  • Less than 4 hours charging time
  • Optima HD voice, full duplex technology
  • 20-foot (6-meter) and 360-degree microphone pickup range
  • Yealink Noise Proof technology
  • 5-way conference call
  • Upgrade Over-the-Air (OTA)

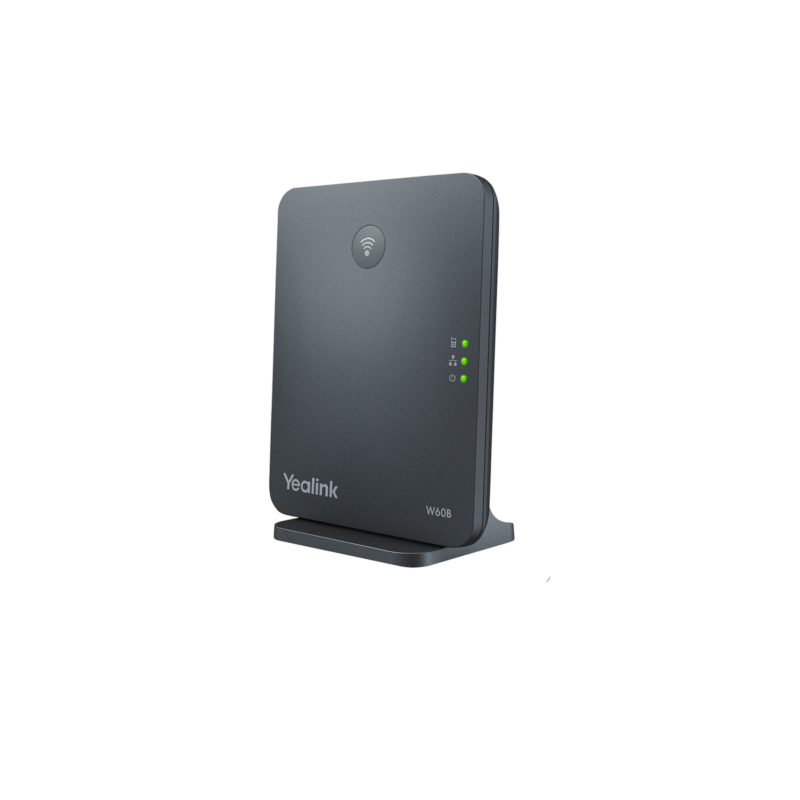

  • Works with Yealink W60B Base Station


Yealink W60B Core Features:


  • DECT technology
  • Up to 8 concurrent calls
  • Up to 8 DECT cordless handsets
  • Up to 8 VoIP accounts
TECHNICAL INFO
SPECIFICATIONS
Phone Features
  • Up to 8 simultaneous calls
  • Up to 8 handset (CP930W works as a handset)
  • Up to 8 SIP accounts (only one SIP account on CP930W)
  • Up to 5 repeaters per base station (RT20/RT20U)
  • Up to 6 repeaters per base station (RT30)
  • Paging, intercom, dial plan
  • Call hold, call transfer, 5-way conference (CP930W only)
  • Switching between calls
  • Call waiting, mute, silence, DND
  • Caller ID with name and number
  • Anonymous call, Anonymous call rejection
  • Call forward (always/busy/no answer)
  • Speed dial, voicemail, redial
  • Message Waiting Indication (MWI)
  • Music on hold (server-based)
  • Local phonebook for up to 800 entries (store in the base, 100 entries in each handset)
  • Remote phonebook/LDAP
  • Phonebook search/import/export
  • Call history (all/missed/placed/received)
  • Direct IP call without SIP proxy
  • Reset to factory, reboot
  • Keypad lock, emergency call
  • Broadsoft directory, BroadSoft call log
  • Broadworks feature key synchronization
  • Shared Call Appearance (SCA)
Management
  • Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
  • Auto-provision with PnP
  • Handset upgrade: OTA (Over-The-Air)/USB port
  • Configuration: browser/phone/auto-provision
  • Trace package and system log export
Audio Features
  • Full-duplex speakerphone
  • Receiver volume control
  • Ringer volume control
  • Multiple advisory tones
  • Acoustic warning for low battery status
  • DTMF
  • Wideband codec: Opus, AMR-WB (optional), G.722
  • Narrowband codec: PCMU, PCMA, G.726, G.729, iLBC
  • VAD, CNG, AGC, PLC, AJB
  • Support VQ-RTCPXR (RFC6035), RTCP-XR
Network Features
  • SIP v1 (RFC2543), v2 (RFC3261)
  • SNTP/NTP
  • VLAN (802.1Q and 802.1P)
  • 802.1x, LLDP, PPPoE
  • STUN Client (NAT Traversal)
  • UDP/TCP/TLS
  • IP assignment: static/DHCP
  • Support outbound proxy server backup
Security
  • Open VPN
  • Transport Layer Security (TLS)
  • HTTPS (server/client), SRTP (RFC3711)
  • Digest authentication
  • Secure configuration file via AES encryption
  • Support SHA256/SHA512/SHA384
  • Three-level configuration mode: Admin/Var/User
DECT
  • Frequency bands: 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
  • DECT Standards: CAT-iq2.0
Interface
  • 1 x RJ45 10/100M Ethernet port (W60B)
  • Power over Ethernet (IEEE 802.3af), Class 1 (W60B)
Physical Features
  • Indoor Range: 50m (in ideal conditions)
  • Outdoor Range: 300m (in ideal conditions)
  • Standby Time: 360 hours (in ideal conditions)
  • Talk Time: 24 hours (in ideal conditions)
  • 3.1" 248x120-pixel graphical LCD with backlight
  • Sensitive touch keypad
  • 25 total keys: 4 soft keys, off-hook key, on-hook key, 12-key numerical keypad, Bluetooth, mute, volume keys, 2 navigation keys, OK key
  • Multilingual user interface
  • Three LED indicators on W60B: 1 x Registration LED, 1 x Network Status LED - 1 x Power Indicator LED
  • External Yealink AC adapter: AC 100-240V Input and DC 5V/600mA Output (W60B), AC 100~240V input and DC 12V/1A output (CP930W)
  • Color: CP930W: Space Silver; Base: Classic Grey
  • Phone size: 307.8mm*298.5mm*66.9mm
  • Base station size: 130mm x 100mm x 25.1mm
  • Charging cradle size: 110mm*127mm*21.5mm
  • Operating humidity: 10~90%
  • Operating temperature: -10~+40°C (+14~104°F)
Package Contents
  • Yealink CP930W DECT conference phone (built-in battery)
  • Charger cradle
  • W60B Base Station
  • Base Stand
  • Two Yealink Power Adapters
  • Ethernet Cable
  • Quick Start Guide
